Maedler 15492500

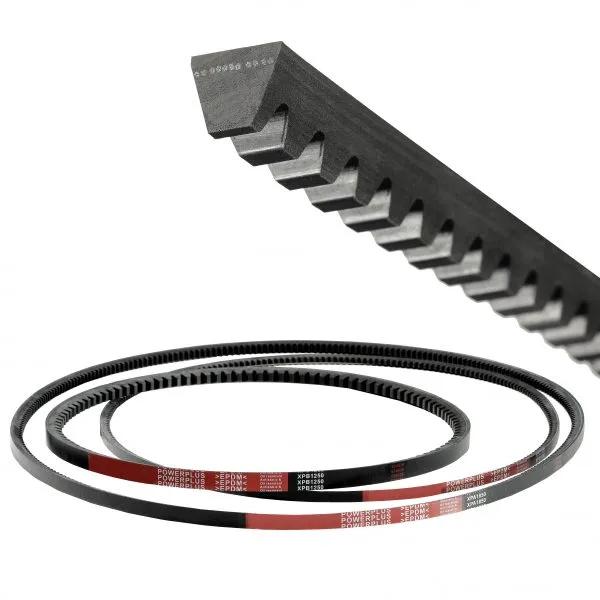

Material: High Performance EPDM with polyester cord. Advanced: These raw edged, cogged EPDM-V-belts are top products with high-strength tensile members for improved energy efficiency and drive performance. Powerful: The transmittable power is more than double as it is at normal narrow V-belts and more than triple as it is at classic V-belts. Maintenance-free: Due to the minimal elongation, a retensioning is normally not requiered. Versatile use: With good chemical resitance and a large temperature range, these belts a ideal for force-locking drives. Existing narrow V-belts and classic V-belts can be replaced without problems. Common V-belt pulleys are suitable for all these three kinds of belts. Because of the tight length tolerances, the belts can be used in sets without measuring. Operating temperatur: -40° to +130°C. V-belts XPB are a useful substitute for SPB and 17. Width b = 16. 3 mm. Height h = 13 mm. Smallest medium pulley diametre = 112 mm. Weight per Metre 0. 183 kg.
