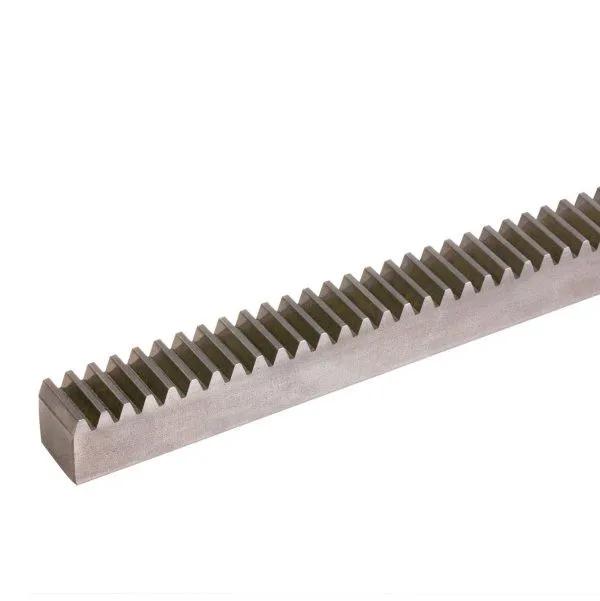

Maedler 20599603
Material: Stainless steel 1. 4305. Milled teeth. Precisely
Straightened. Straight teeth. Pressure angle 20°. Tooth quality 8d25
modelled on DIN 3962, 3967, 3968. Pitch 5 mm = Module 1. 59. Pitch 10 mm
= Module 3. 18. The teeth on the gear racks are manufactured using an
overhead milling cutter. This leads to negative tolerances for dimension
a and h0: At pitch 5mm: -0,2 mm. At pitch 10mm: -0,3 mm. From Module 2,
except for nominal length 500 mm, cut for continuous linking. * Length =
Nominal length. The real length is roughly one multiple of the pitch.
| Brand | Maedler |
