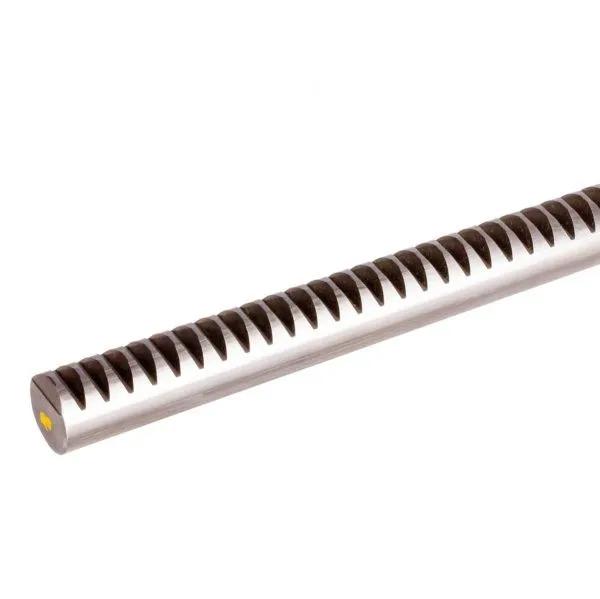

Maedler 20599634
Material: Stainless steel 1. 4305.
Outside diameter = h9 drawn.
Straight teeth, milled.
Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3967.
Pitch 5 mm = module 1. 59.
Pitch 10 mm = module 3. 18.
The teeth on the gear racks are manufactured using an overhead milling cutter.
This leads to negative tolerances. Dimensions ha and h0:
Pitch 5 mm: -0. 2 mm.
Pitch 10 mm: -0. 3 mm.
| Brand | Maedler |
