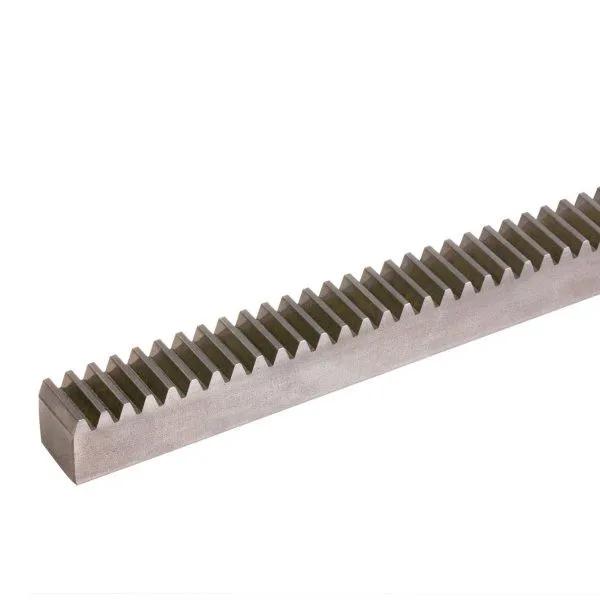

Maedler 24499603
Material: Stainless steel 1. 4305.
Milled teeth, precisely straightened.
Straight teeth. Pressure angle 20°.
Tooth quality 8d25 modelled on DIN 3967.
The teeth on the gear racks are manufactured using an overhead milling cutter.
This leads to negative tolerances for dimension a and h0:
up to Module 2: -0,2 mm.
Module 2,5 to 4: -0,3 mm.
From Module 2, except for nominal length 500 mm, cut for continuous linking.
| Brand | Maedler |
