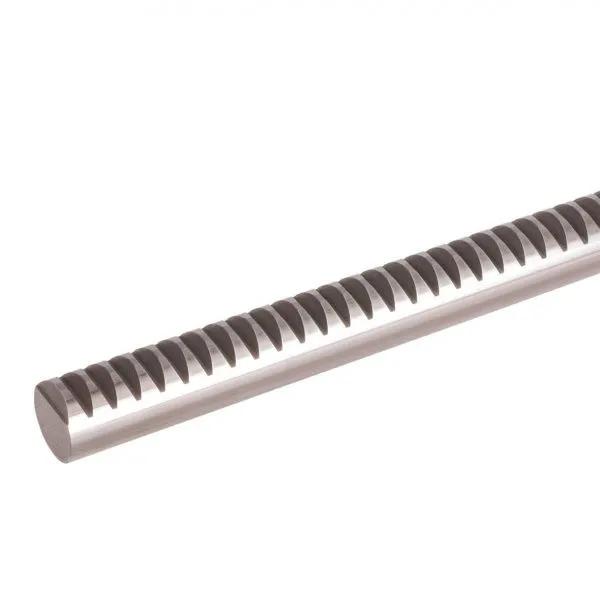

Maedler 24563200
Material:
Up to length 1,500mm: Steel St50K.
Length 2000mm = Steel C45k.
Outside diameter = h6 ground.
Straight teeth, milled.
Pressure angle 20°. Tooth quality 8d25 modelled on DIN 3967.
The teeth on the gear racks are manufactured using an overhead milling cutter.
This leads to negative tolerances. Dimensions ha and h0:
up to Module 2: -0,2 mm.
Module 2,5 – 4: -0,3 mm.
Module 5 – 6: -0,4 mm.
| Brand | Maedler |
