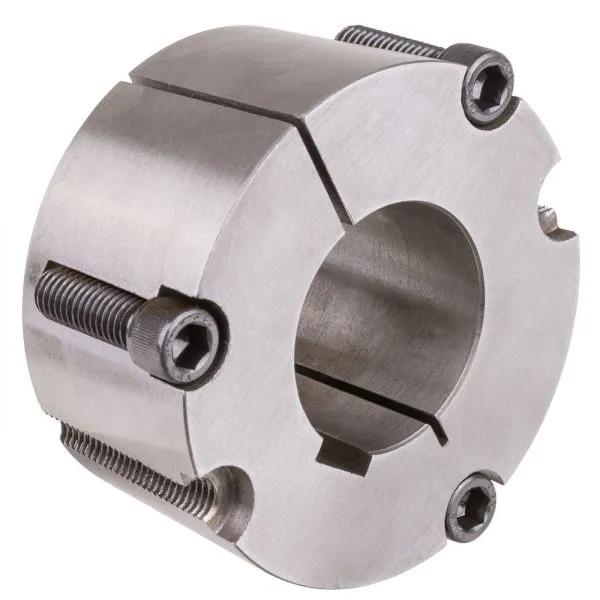

Maedler 62251470

Material: GG25. Bores ISO E8. Keyways in accordance with DIN 6885/1. Screws included in delivery (spare screw product no. 622 512 99, order quantity as needed). Screw size BSW 5/8" x 1 3/4". Spanner size 12 mm. Cone and front side ground. Shaft tolerance +0,5 mm / -0,125 mm. Can be used with or without feather key, depending on the required torque. Other bush sizes and bores are available on short notice (some in stock). Assembly instructions In this youtube video we show the mounting and demounting of taper bushes: Video clip (3. 5 Minutes) Fastening torque: 170 Nm. Slip torque without keyway: bore 48 mm: 1250 Nm; bore 75 mm: 2200 Nm; bore 100 mm: 3460 Nm.
