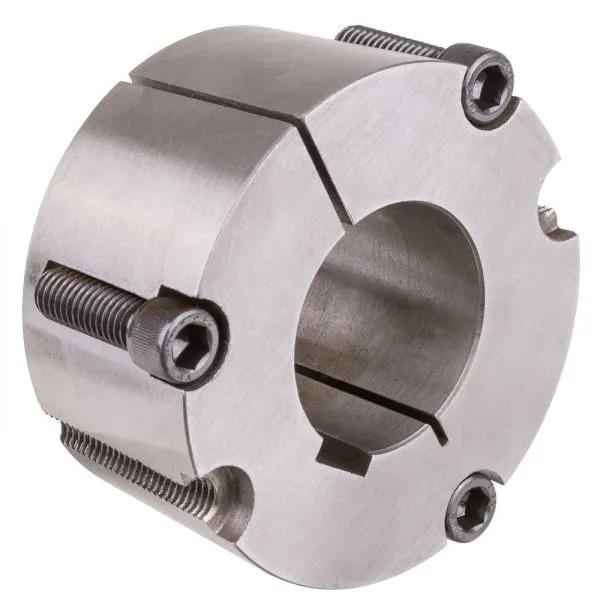

Maedler 62251570
Material: GG25.
Bores ISO E8. Keyways in accordance with DIN 6885/1. Screws included in
delivery (spare screw product no. 622 515 99, order quantity as needed).
Screw size BSW 3/4" x 2". Spanner size 14mm. Cone and front side ground.
Shaft tolerance +0,5 mm / -0,125 mm. Can be used with or without feather
key, depending on the required torque. Other bush sizes and bores are
available on short notice (some in stock). Assembly
instructions
In this youtube video we show the mounting and demounting of taper
bushes: Video clip (3. 5
Minutes)
Fasting torque: 190 Nm. Slip torque without keyway: bore 55 mm: 1840 Nm;
bore 75mm: 3000 Nm; bore 100mm: 4500 Nm
| Brand | Maedler |
