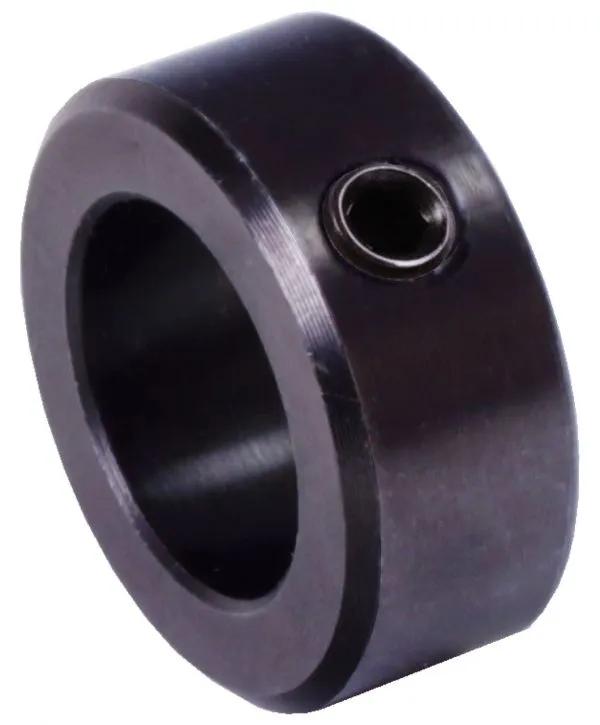

Maedler 623890426
Light-duty series. With set screw made from steel with hexagon socket as in DIN EN ISO 4027. Up to size d1 = 70 mm: Against DIN 705 A, with one screw with hexagon socket instead of slotted screw. From size d1 = 75 mm: As in DIN 705 A, with 2 screws with hexagon socket, with offset 135°. Bright turned and kalibrated. Bores tolerance H8. Large chamfer on one side of the outside diameter. Size 9 not like DIN. Temperature range: -40ºC to +175ºC.
| Brand | Maedler |
