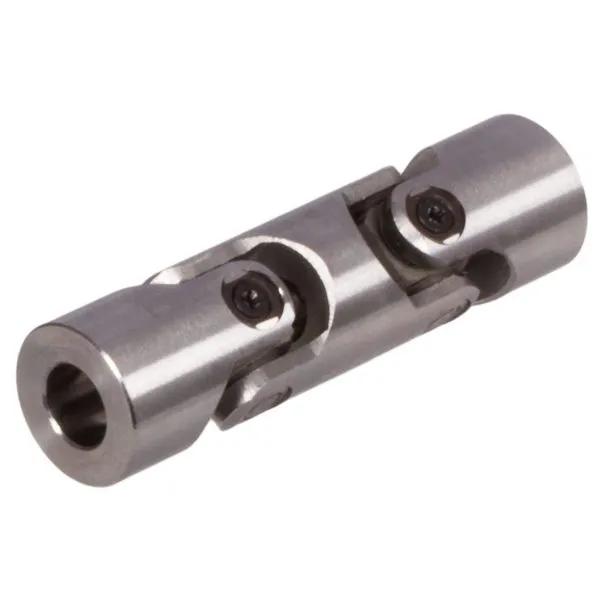

Maedler 63175800
Material: Steel 35SMnPb10. Bearing parts 18NiCrMo5Pb.
Max. Operating Angle 90°. These single and double universal joints
feature a simple design with very small tolerances and high precision
and performance. A special grinding process realizes a perfect
parallelism of the axes and the single parts of the joints – this
guarantees an extremely long service life. All contact surfaces are
hardened, ground and lapped. These universal joints are used at high
torques and high speeds up to max. 800 rpm.
Optionally without or with keyway DIN 6885-1, on both sides.
| Brand | Maedler |
