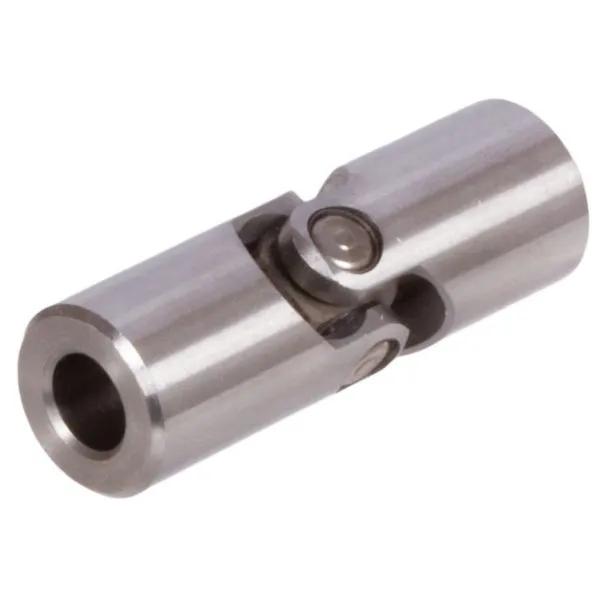

Maedler 63199140N
Material: Stainless Steel 1. 4301 (X5CrNi1810). Needle bearings
from steel EN 10027-1 DC04 (1. 0338) and 100Cr6.
The combination of stainless steel body and standard needle bearings
allows the use in applications where high speed and low backlash are
required, even in demanding conditions. Max. Operating Angle 45°. The
needle-bearing universal joints have almost zero backlash, high accuracy
and good turning properties. These special needle-rollers without cage
can take high loads even at large operating angles. A special grinding
process realizes a perfect parallelism of the axes and the single parts
of the joints – which guarantees an extremely long service life.
Optionally without or with keyway DIN 6885-1, on both sides.
| Brand | Maedler |
