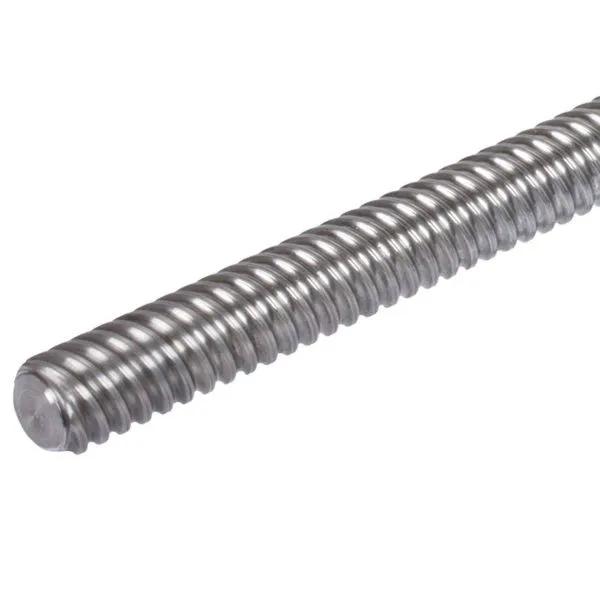

Maedler 64050102

Material: Bearing steel 100Cr6, No. 1. 3505, rolled. Tensile strength 1570 N/mm², Brinell hardness 207 HB. • Rolled ball screw spindle. • To be combined with MÄDLER® flanged ball screw nuts and cylindrical ball screw nuts. • Pitch accuracy 52 μm/300 mm (T7). • Straightness 0,1 mm/m. • Special lengths and spindle end reworking against extra charge. Temperature range: -20°C to +80°C (for short time to +110°C). Note: Please refer to the mounting- and operating instruction. Before use, the nut and the spindle have to be lubricated. For grease lubrication, normal roller bearing grease is recommended. The lubricant consumption depends on the condition of use.
