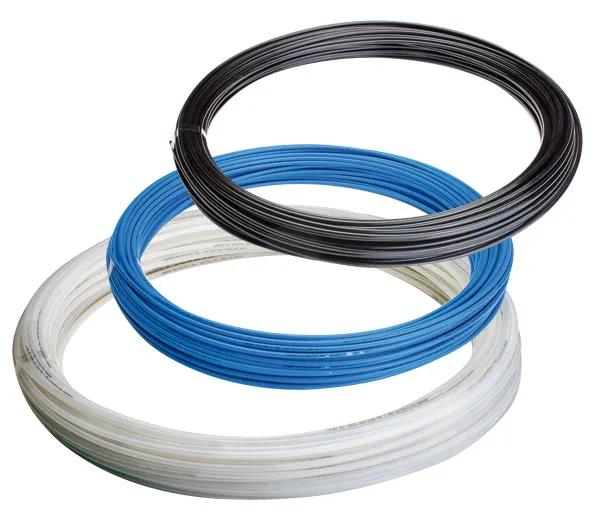

Maedler 86991202
Material: Polyurethane.
Dimensions and tolerances to DIN 73378.
Max. length 100m.
Application: Pneumatic-tube for Pneufit-Push-In or Pneufit C connectors.
Pu-tubes allow only a lower pressure than Pa-Tubes,
but they need a smaller radius.
Max. Operating Pressure:
The pressures shown in the table are valid for -40°C up to +20°C.
At higher temperature note follwing factors:
Temperature 30 °C: Factor 0,83.
Temperature 40 °C: Factor 0,72.
Temperature 50 °C: Factor 0,64.
Temperature 60 °C: Factor 0,57 (max. operating temperature).
1 Unit = 1 Meter = 39.37 Inches
| Brand | Maedler |
