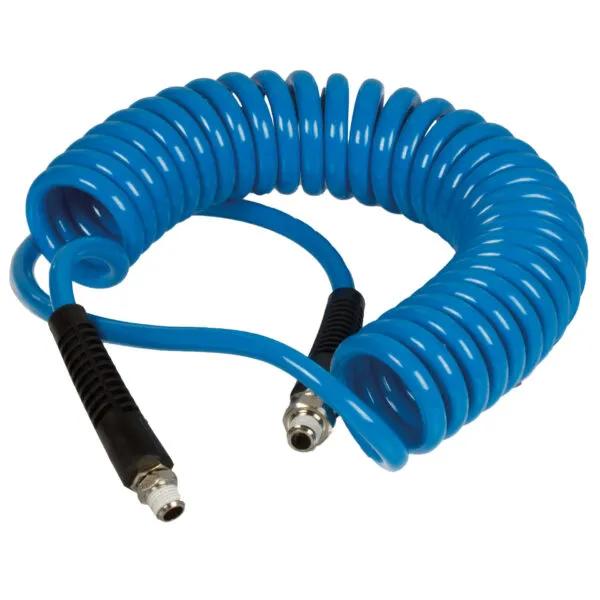

Maedler 87010808
Material: Polyurethane, flexible and extremely rugged.
Fitting made from nickel-plated brass.
The hose retracts to its original shape: the coils will not loose their original shape even under most adverse operating conditions.
Data of fixed fitting on the supply side:
PTFE pre-coated thread
PVC coating to protect hose
Data of the swivel connection on the side of the compressed-air tool:
Swivelling joint with ball bearing
Easy swivelling, even under pressure, no overstressing of hose coil.
Max. temperature: 70ºC. Operating pressure at 20°C:
Ø 5 x 8 : 9 bar
Ø 6. 5 x 10 : 9 bar
Ø 8 x 12 : 8 bar
| Brand | Maedler |
