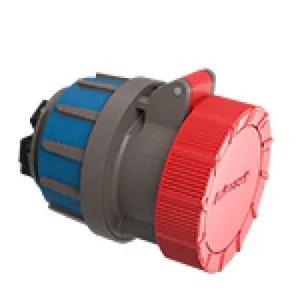

Palazzoli 419129
Rotoswitched sockets IP66/IP67/IP69
ROTOR ROTOSWITCHED SOCKET COMPONENT 16A 2P+E 400V 9H IP66/67/69
Terminals type: Screw - indirect clamping
Rated current: 16A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP69 - IEC 60529
Poles: 2P+
Clock Position: 9h
Rated operating voltage: 400V
Rated insulation voltage: 690 V
Manufacturing material: High resistance technopolymer
Width: -
Insulation Class: II
Operating category: AC-23A
Min conductor section: 1mm²
Max conductor section: 10mm²
Colour: Blue RAL 5015, Grey RAL 7046
Min. Amb. Temp.: -40°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
ROTOR ROTOSWITCHED SOCKET COMPONENT 16A 2P+E 400V 9H IP66/67/69
Terminals type: Screw - indirect clamping
Rated current: 16A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP69 - IEC 60529
Poles: 2P+
Clock Position: 9h
Rated operating voltage: 400V
Rated insulation voltage: 690 V
Manufacturing material: High resistance technopolymer
Width: -
Insulation Class: II
Operating category: AC-23A
Min conductor section: 1mm²
Max conductor section: 10mm²
Colour: Blue RAL 5015, Grey RAL 7046
Min. Amb. Temp.: -40°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
| Brand | Palazzoli |
