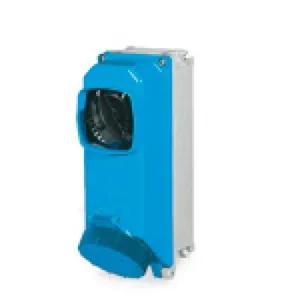

Palazzoli 470126
Switched sockets in thermosetting (GRP) with mechanical interlock (M95), for wall mounting IP66/IP67/IP69
TAIS SWITCHED SOCKET IN THERMOSETTING GRP WITH MECHANICAL INTERLOCK 16A 2P+E 200-250V 50-60HZ 6H
Terminals type: Screw - indirect clamping
Electric system: PRI16A_2P.png
Front panel: 472620s.png
Rated current: 16A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67/IP69
Poles: 2P+
Clock Position: 6h
Rated operating voltage: 230V
Rated insulation voltage: 690 V
Manufacturing material: Palazzoli Thermosetting GRP
Width: 92 mm
Execution: Wall mounting
Insulation Class: II
Operating category: AC-23A / AC-3 16A - 250V
Dimensions: 92X252X153 mm
Hole type: M25
Min conductor section: 1mm²
Max conductor section: 10mm²
Colour: Blue RAL 5015, Grey RAL 7042
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +80°C
