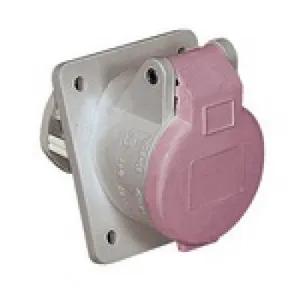

Palazzoli 471059
Panel mounted sockets 20° angled, for extra-low voltage IP44
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, 20° ANGLED, 32A 3P 20-25/40-50V 100-200HZ 4H IP44
Storage room temperature MIN: -30°C
Colour: Grey RAL 7042
Shock resistance: IK08 according to IEC/EN 62262
Electric system: PR32A_3P.png
Storage room temperature MAX: +70°C
Tightening diameter: -
Terminals type: Screw - direct tightening
Max. Amb. Temp.: +50°C
Min conductor section: 4mm²
Min. Amb. Temp.: -25°C
Max conductor section: 10mm²
Rated current: 32A
Frequency: 100-200Hz
IP Protection degree: IP44
Poles: 3P
Clock Position: 4h
Rated operating voltage: 24-42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 50X50 mm
Standard plug-socket: IEC 60309-2
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, 20° ANGLED, 32A 3P 20-25/40-50V 100-200HZ 4H IP44
Storage room temperature MIN: -30°C
Colour: Grey RAL 7042
Shock resistance: IK08 according to IEC/EN 62262
Electric system: PR32A_3P.png
Storage room temperature MAX: +70°C
Tightening diameter: -
Terminals type: Screw - direct tightening
Max. Amb. Temp.: +50°C
Min conductor section: 4mm²
Min. Amb. Temp.: -25°C
Max conductor section: 10mm²
Rated current: 32A
Frequency: 100-200Hz
IP Protection degree: IP44
Poles: 3P
Clock Position: 4h
Rated operating voltage: 24-42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 50X50 mm
Standard plug-socket: IEC 60309-2
| Brand | Palazzoli |
