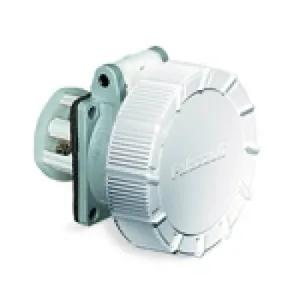

Palazzoli 471123
Panel mounted sockets straight for extra-low voltage IP67
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, STRAIGHT, 16A 3P 20-25/40-50V 100-200HZ 4H IP67
Storage room temperature MAX: +70°C
Colour: Grey RAL 7042
Electric system: PR16A_3P.png
Shock resistance: IK08 according to IEC/EN 62262
Max. Amb. Temp.: +50°C
Tightening diameter: -
Terminals type: Screw - direct tightening
Max conductor section: 10mm²
Storage room temperature MIN: -30°C
Min. Amb. Temp.: -25°C
Min conductor section: 4mm²
Rated current: 16A
Frequency: 100-200Hz
IP Protection degree: IP67
Poles: 3P
Clock Position: 4h
Rated operating voltage: 24-42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 50X50 mm
Standard plug-socket: IEC 60309-2
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, STRAIGHT, 16A 3P 20-25/40-50V 100-200HZ 4H IP67
Storage room temperature MAX: +70°C
Colour: Grey RAL 7042
Electric system: PR16A_3P.png
Shock resistance: IK08 according to IEC/EN 62262
Max. Amb. Temp.: +50°C
Tightening diameter: -
Terminals type: Screw - direct tightening
Max conductor section: 10mm²
Storage room temperature MIN: -30°C
Min. Amb. Temp.: -25°C
Min conductor section: 4mm²
Rated current: 16A
Frequency: 100-200Hz
IP Protection degree: IP67
Poles: 3P
Clock Position: 4h
Rated operating voltage: 24-42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 50X50 mm
Standard plug-socket: IEC 60309-2
| Brand | Palazzoli |
