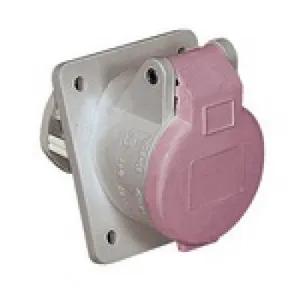

Palazzoli 471162
Panel mounted sockets 20° angled, for extra-low voltage IP44
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, 20° ANGLED, 16A 2P 40-50V 50-60HZ 12H IP44
Max. Amb. Temp.: +50°C
Shock resistance: IK08 according to IEC/EN 62262
Tightening diameter: -
Storage room temperature MIN: -30°C
Terminals type: Screw - direct tightening
Max conductor section: 10mm²
Min conductor section: 4mm²
Min. Amb. Temp.: -25°C
Colour: Grey RAL 7042
Electric system: PR16A_2P.png
Storage room temperature MAX: +70°C
Rated current: 16A
Frequency: 50/60Hz
IP Protection degree: IP44
Poles: 2P
Clock Position: 12h
Rated operating voltage: 42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 50X50 mm
Standard plug-socket: IEC 60309-2
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, 20° ANGLED, 16A 2P 40-50V 50-60HZ 12H IP44
Max. Amb. Temp.: +50°C
Shock resistance: IK08 according to IEC/EN 62262
Tightening diameter: -
Storage room temperature MIN: -30°C
Terminals type: Screw - direct tightening
Max conductor section: 10mm²
Min conductor section: 4mm²
Min. Amb. Temp.: -25°C
Colour: Grey RAL 7042
Electric system: PR16A_2P.png
Storage room temperature MAX: +70°C
Rated current: 16A
Frequency: 50/60Hz
IP Protection degree: IP44
Poles: 2P
Clock Position: 12h
Rated operating voltage: 42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 50X50 mm
Standard plug-socket: IEC 60309-2
| Brand | Palazzoli |
