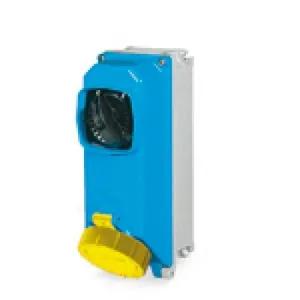

Palazzoli 472610
Switched sockets in thermosetting (GRP) with mechanical interlock and fuse-holder (M95), for wall mounting IP66/IP67/IP69
TAIS SWITCHED SOCKET IN THERMOSETTING GRP WITH MECHANICAL INTERLOCK AND FUSE-HOLDER 16A 2P+E 100-130V 4H 50-60HZ
Electric system: PRIF16A_2P.png
Front panel: 472610s.png
Terminals type: Screw - indirect clamping
Rated current: 16A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67/IP69
Poles: 2P+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 690 V
Manufacturing material: Palazzoli Thermosetting GRP
Width: 92 mm
Execution: Wall mounting
Type of protection: Fuse 10,3x38 gG max 16A
Insulation Class: II
Operating category: AC-23A / AC-3 16A - 130V
Dimensions: 92X252X153 mm
Hole type: M25
Min conductor section: 1mm²
Colour: Grey RAL 7042, Blue RAL 5015
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +80°C
TAIS SWITCHED SOCKET IN THERMOSETTING GRP WITH MECHANICAL INTERLOCK AND FUSE-HOLDER 16A 2P+E 100-130V 4H 50-60HZ
Electric system: PRIF16A_2P.png
Front panel: 472610s.png
Terminals type: Screw - indirect clamping
Rated current: 16A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67/IP69
Poles: 2P+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 690 V
Manufacturing material: Palazzoli Thermosetting GRP
Width: 92 mm
Execution: Wall mounting
Type of protection: Fuse 10,3x38 gG max 16A
Insulation Class: II
Operating category: AC-23A / AC-3 16A - 130V
Dimensions: 92X252X153 mm
Hole type: M25
Min conductor section: 1mm²
Colour: Grey RAL 7042, Blue RAL 5015
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +80°C
