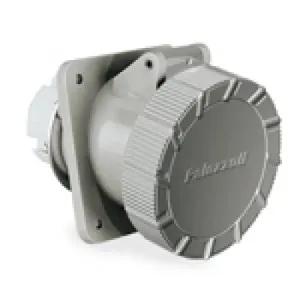

Palazzoli 473961
Panel mounted sockets15° angled, for high currents for extra-low voltage 50-60Hz IP67
CEE EXTRA-LOW VOLTAGE PANEL MOUNTED SOCKET, 15° ANGLED, 63A 2P 48V 50-60HZ 1H IP67
Storage room temperature MIN: -30°C
Terminals type: Screw - direct tightening
Electric system: PR63A_2P.png
Colour: Grey RAL 7042
Max conductor section: 16mm²
Storage room temperature MAX: +70°C
Min conductor section: 4mm²
Max. Amb. Temp.: +50°C
Tightening diameter: -
Min. Amb. Temp.: -25°C
Shock resistance: IK08 according to IEC/EN 62262
Rated current: 63A
Frequency: 50/60Hz
IP Protection degree: IP67
Poles: 2P+
Clock Position: 1h
Rated operating voltage: 48V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Panel mounting
Modules Number: -
Flange dimensions: 100X107 mm
Standard plug-socket: IEC 60309-2
