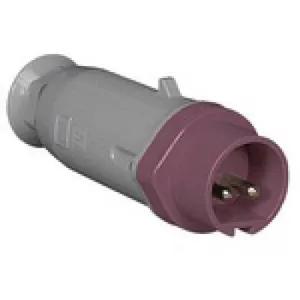

Palazzoli 477105
Plugs with cable gland for extra-low voltage IP44
CEE EXTRA-LOW VOLTAGE STRAIGHT PLUG 32A 2P 40-50V 50-60HZ 12H IP44
Tightening diameter: 10,5÷23 mm
Max conductor section: 10mm²
Min conductor section: 4mm²
Rated current: 32A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP44
Poles: 2P
Clock Position: 12h
Rated operating voltage: 42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Mobile
Terminals type: Screw - direct tightening
Colour: Grey RAL 7042
Standard plug-socket: IEC 60309-2
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
CEE EXTRA-LOW VOLTAGE STRAIGHT PLUG 32A 2P 40-50V 50-60HZ 12H IP44
Tightening diameter: 10,5÷23 mm
Max conductor section: 10mm²
Min conductor section: 4mm²
Rated current: 32A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP44
Poles: 2P
Clock Position: 12h
Rated operating voltage: 42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Mobile
Terminals type: Screw - direct tightening
Colour: Grey RAL 7042
Standard plug-socket: IEC 60309-2
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
| Brand | Palazzoli |
