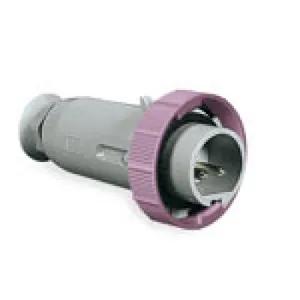

Palazzoli 477123
Plugs with cable gland for extra-low voltageIP67
CEE EXTRA-LOW VOLTAGE STRAIGHT PLUG 16A 3P 20-25/40-50V 100-200HZ 4H IP67
Tightening diameter: 10,5÷23 mm
Min conductor section: 4mm²
Max conductor section: 10mm²
Rated current: 16A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 100-200Hz
IP Protection degree: IP67
Poles: 3P
Clock Position: 4h
Rated operating voltage: 24-42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Mobile
Terminals type: Screw - direct tightening
Colour: Grey RAL 7042
Standard plug-socket: IEC 60309-2
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
CEE EXTRA-LOW VOLTAGE STRAIGHT PLUG 16A 3P 20-25/40-50V 100-200HZ 4H IP67
Tightening diameter: 10,5÷23 mm
Min conductor section: 4mm²
Max conductor section: 10mm²
Rated current: 16A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 100-200Hz
IP Protection degree: IP67
Poles: 3P
Clock Position: 4h
Rated operating voltage: 24-42V
Rated insulation voltage: 500 V
Manufacturing material: High resistance technopolymer
Execution: Mobile
Terminals type: Screw - direct tightening
Colour: Grey RAL 7042
Standard plug-socket: IEC 60309-2
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
| Brand | Palazzoli |
