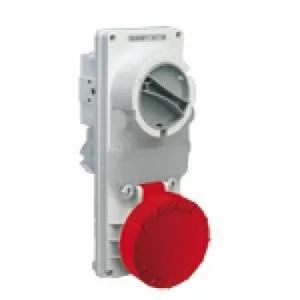

Palazzoli 481329
Switched sockets with mechanical interlock, for flush mounting 63A 50-60Hz IP65
TOPTER SWITCHED SOCKET WITH MECHANICAL INTERLOCK 63A 2P+E 380-415V 50-60HZ 9H IP65
Front panel: 481336s.png
Electric system: PRI63A_2P.png
Terminals type: Screw - indirect clamping
Rated current: 63A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP65
Poles: 2P+
Clock Position: 9h
Rated operating voltage: 400V
Rated insulation voltage: 500 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Width: 108 mm
Execution: Board
Insulation Class: II
Operating category: AC-23A / AC-3 63A - 415V
Dimensions: 115X295X137 mm
Min conductor section: 10mm²
Max conductor section: 35mm²
Colour: Grey RAL 7035
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
TOPTER SWITCHED SOCKET WITH MECHANICAL INTERLOCK 63A 2P+E 380-415V 50-60HZ 9H IP65
Front panel: 481336s.png
Electric system: PRI63A_2P.png
Terminals type: Screw - indirect clamping
Rated current: 63A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP65
Poles: 2P+
Clock Position: 9h
Rated operating voltage: 400V
Rated insulation voltage: 500 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Width: 108 mm
Execution: Board
Insulation Class: II
Operating category: AC-23A / AC-3 63A - 415V
Dimensions: 115X295X137 mm
Min conductor section: 10mm²
Max conductor section: 35mm²
Colour: Grey RAL 7035
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
| Brand | Palazzoli |
