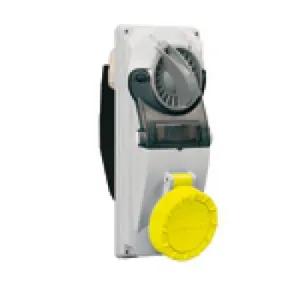

Palazzoli 490224
Switched sockets with mechanical interlock and fuse-holder, for flush mounting 50-60Hz IP66/IP67
TOPTER SWITCHED SOCKET WITH MECHANICAL INTERLOCK AND FUSE-HOLDER 32A 2P+E 200-250V 50-60HZ 4H IP66/IP67
Front panel: 490124s.png
Terminals type: Screw - indirect clamping
Electric system: PRIF32A_2P.png
Rated current: 32A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Poles: 2P+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 690 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Width: 108 mm
Execution: Board
Type of protection: Fuse 10,3x38 gG max 32A
Insulation Class: II
Operating category: AC-23A / AC-3 32A - 130V
Dimensions: 103X230X135 mm
Min conductor section: 1mm²
Max conductor section: 10mm²
Colour: Grey RAL 7035
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
TOPTER SWITCHED SOCKET WITH MECHANICAL INTERLOCK AND FUSE-HOLDER 32A 2P+E 200-250V 50-60HZ 4H IP66/IP67
Front panel: 490124s.png
Terminals type: Screw - indirect clamping
Electric system: PRIF32A_2P.png
Rated current: 32A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Poles: 2P+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 690 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Width: 108 mm
Execution: Board
Type of protection: Fuse 10,3x38 gG max 32A
Insulation Class: II
Operating category: AC-23A / AC-3 32A - 130V
Dimensions: 103X230X135 mm
Min conductor section: 1mm²
Max conductor section: 10mm²
Colour: Grey RAL 7035
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
| Brand | Palazzoli |
