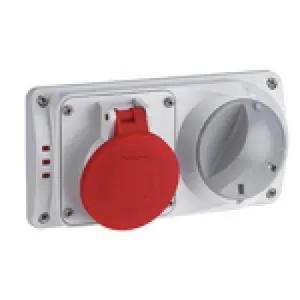

Palazzoli 494136
Switched sockets with mechanical interlock and fuse-holder, for flush mounting 50-60Hz IP44
PRIMA SWITCHED SOCKET WITH MECHANICAL INTERLOCK AND FUSE-HOLDER 16A 3P+E 380-415V 50-60HZ 6H IP44
Front panel: 494136s.png
Terminals type: Screw - indirect clamping
Electric system: PRIF16A_3P.png
Rated current: 16A
Shock resistance: IK08 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP44
Poles: 3P+
Clock Position: 6h
Rated operating voltage: 400V
Rated insulation voltage: 690 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Width: 103 mm
Execution: Board
Type of protection: Fuse 10,3x38 gG max 16A
Insulation Class: II
Operating category: AC-23A / AC-3 16A - 415V
Dimensions: 103X206X80 mm
Min conductor section: 1mm²
Max conductor section: 10mm²
Colour: Grey RAL 7035
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
