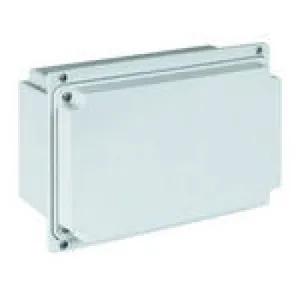

Palazzoli 575505

Box for panel mounting with cover IP56
TOPTER PANEL MOUNTING ENCLOSURE 234X145X76MM WITH BLIND WALLS
Shock resistance: IK08 according to IEC/EN 62262
IP Protection degree: IP56
Manufacturing material: Technopolymer Recyclable Palazzoli
Execution: Wall mounting
Dissipable Power: 20W
Cover type: Blind
Outfit: WITHOUT PLATE
Insulation Class: II
Dimensions: 236X145X76 mm
Terminals type: None
Cover height: 30.50mm
Colour: Grey RAL 7035
Internal dimensions: 236X145X76 mm
Min. Amb. Temp.: -25°C
Max. Amb. Temp.: +50°C
Storage room temperature MIN: -30°C
Storage room temperature MAX: +70°C
