Palazzoli 579709
Control units for modular devices with padlockable window IP65

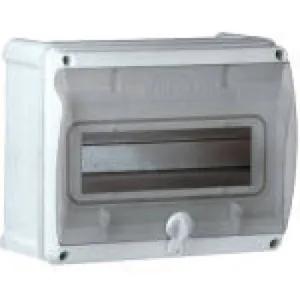

TOPTER WALL-MOUNTING CONTROL UNIT 12 MODULES TOPTER
Shock resistance: IK08 according to IEC/EN 62262
IP Protection degree: IP65
Rated insulation voltage: 690 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Execution: Wall mounting
Dissipable Power: 40W
Insulation Class: II
Dimensions: 250X158X147 mm
N. of modules on DIN rail: 12
Colour: Grey RAL 7035
Internal dimensions: -
Min. Amb. Temp.: -25 °C
Max. Amb. Temp.: +50 °C
Storage room temperature MIN: -30 °C
Storage room temperature MAX: +70 °C
TOPTER WALL-MOUNTING CONTROL UNIT 12 MODULES TOPTER
Shock resistance: IK08 according to IEC/EN 62262
IP Protection degree: IP65
Rated insulation voltage: 690 V
Manufacturing material: Technopolymer Recyclable Palazzoli
Execution: Wall mounting
Dissipable Power: 40W
Insulation Class: II
Dimensions: 250X158X147 mm
N. of modules on DIN rail: 12
Colour: Grey RAL 7035
Internal dimensions: -
Min. Amb. Temp.: -25 °C
Max. Amb. Temp.: +50 °C
Storage room temperature MIN: -30 °C
Storage room temperature MAX: +70 °C
| Brand | Palazzoli |
