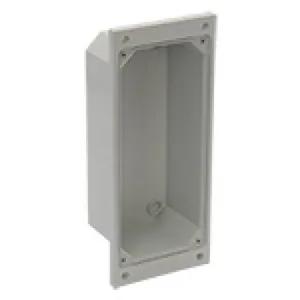

Palazzoli 579711

Bottom box for panel mounting IP66/IP67
TOPTER PANEL FLUSH-MOUNTING BOX FOR INTERLOCKED SOCKETS IP66/IP67
Height Box: 69mm
Storage room temperature MIN: -30°C
Min. Amb. Temp.: -25°C
Shock resistance: IK08 according to IEC/EN 62262
Terminals type: None
Max. Amb. Temp.: +50°C
Storage room temperature MAX: +70°C
Rated insulation voltage: 1000 V
Colour: Grey RAL 7035
IP Protection degree: IP66/IP67
Manufacturing material: Technopolymer Recyclable Palazzoli
Execution: Panel mounting
Insulation Class: II
Dimensions: 115X270X69 mm
Internal dimensions: -
