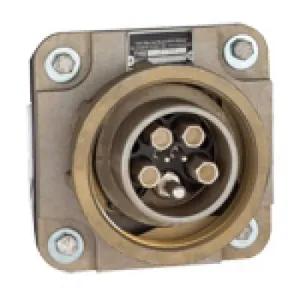

Palazzoli 751550
Panel mounted inlets straight, in aluminium alloy, for high amperages 50-60Hz IP67
ALUMAX STRAIGHT INLET 250A 3P+N+E IP67
Min conductor section: 50mm²
Tightening diameter: -
Terminals type: Screw - direct tightening
Colour: Natural
Max conductor section: 70mm²
Shock resistance: IK10 according to IEC/EN 62262
Rated current: 250A
Frequency: 50/60Hz
IP Protection degree: IP67
Poles: 3P+N+
Rated operating voltage: 1000V
Rated insulation voltage: 1000 V
Manufacturing material: Aluminum alloy
Execution: Panel mounting
Flange dimensions: 158X158 mm
Standard plug-socket: Proprietary
Min. Amb. Temp.: -30°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
ALUMAX STRAIGHT INLET 250A 3P+N+E IP67
Min conductor section: 50mm²
Tightening diameter: -
Terminals type: Screw - direct tightening
Colour: Natural
Max conductor section: 70mm²
Shock resistance: IK10 according to IEC/EN 62262
Rated current: 250A
Frequency: 50/60Hz
IP Protection degree: IP67
Poles: 3P+N+
Rated operating voltage: 1000V
Rated insulation voltage: 1000 V
Manufacturing material: Aluminum alloy
Execution: Panel mounting
Flange dimensions: 158X158 mm
Standard plug-socket: Proprietary
Min. Amb. Temp.: -30°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
| Brand | Palazzoli |
