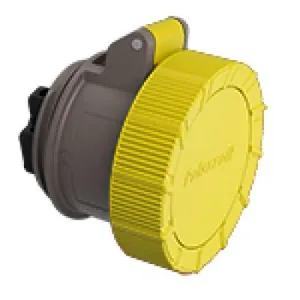

Palazzoli 779244
Sockets IP66/IP67/IP68/IP69
X-CEE SOCKET COMPONENT 32A 3P+N+E 110V 4H IP66/67/68/69
Max conductor section: 10mm²
Tightening diameter: -
Min conductor section: 1mm²
Rated current: 32A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP68/IP69 - IEC 60529
Poles: 3P+N+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 690 V
Manufacturing material: High resistance technopolymer
Terminals type: Screw - indirect clamping
Colour: Grey RAL 7046, Blue RAL 5015
Standard plug-socket: IEC 60309-2
Min. Amb. Temp.: -40°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
X-CEE SOCKET COMPONENT 32A 3P+N+E 110V 4H IP66/67/68/69
Max conductor section: 10mm²
Tightening diameter: -
Min conductor section: 1mm²
Rated current: 32A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP68/IP69 - IEC 60529
Poles: 3P+N+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 690 V
Manufacturing material: High resistance technopolymer
Terminals type: Screw - indirect clamping
Colour: Grey RAL 7046, Blue RAL 5015
Standard plug-socket: IEC 60309-2
Min. Amb. Temp.: -40°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
| Brand | Palazzoli |
