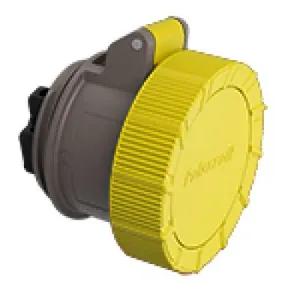

Palazzoli 779334
Sockets IP66/IP67/IP68/IP69
X-CEE SOCKET COMPONENT 63A 3P+E 110V 4H IP66/67/68/69
Max. Amb. Temp.: +60°C
Min conductor section: 6mm²
Min. Amb. Temp.: -40°C
Terminals type: Screw - indirect clamping
Shock resistance: IK10 according to IEC/EN 62262
Storage room temperature MAX: +90°C
Max conductor section: 25mm²
Storage room temperature MIN: -50°C
Colour: Blue RAL 5015, Grey RAL 7046
Tightening diameter: -
Rated current: 63A
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP68/IP69 - IEC 60529
Poles: 3P+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 1000 V
Manufacturing material: High resistance technopolymer
X-CEE SOCKET COMPONENT 63A 3P+E 110V 4H IP66/67/68/69
Max. Amb. Temp.: +60°C
Min conductor section: 6mm²
Min. Amb. Temp.: -40°C
Terminals type: Screw - indirect clamping
Shock resistance: IK10 according to IEC/EN 62262
Storage room temperature MAX: +90°C
Max conductor section: 25mm²
Storage room temperature MIN: -50°C
Colour: Blue RAL 5015, Grey RAL 7046
Tightening diameter: -
Rated current: 63A
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP68/IP69 - IEC 60529
Poles: 3P+
Clock Position: 4h
Rated operating voltage: 110V
Rated insulation voltage: 1000 V
Manufacturing material: High resistance technopolymer
| Brand | Palazzoli |
