Palazzoli 779343
Sockets IP66/IP67/IP68/IP69

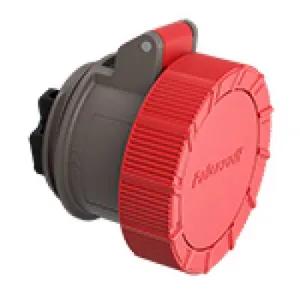

X-CEE SOCKET COMPONENT 63A 3P+N+E 380-440V 3H IP66/67/68/69
Tightening diameter: -
Min conductor section: 6mm²
Rated current: 63A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP68/IP69 - IEC 60529
Poles: 3P+N+
Clock Position: 3h
Rated operating voltage: 380-440V
Rated insulation voltage: 1000 V
Manufacturing material: High resistance technopolymer
Terminals type: Screw - indirect clamping
Colour: Grey RAL 7046, Blue RAL 5015
Min. Amb. Temp.: -40°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
X-CEE SOCKET COMPONENT 63A 3P+N+E 380-440V 3H IP66/67/68/69
Tightening diameter: -
Min conductor section: 6mm²
Rated current: 63A
Shock resistance: IK10 according to IEC/EN 62262
Frequency: 50/60Hz
IP Protection degree: IP66/IP67
Additional IPdegree protection: IP68/IP69 - IEC 60529
Poles: 3P+N+
Clock Position: 3h
Rated operating voltage: 380-440V
Rated insulation voltage: 1000 V
Manufacturing material: High resistance technopolymer
Terminals type: Screw - indirect clamping
Colour: Grey RAL 7046, Blue RAL 5015
Min. Amb. Temp.: -40°C
Max. Amb. Temp.: +60°C
Storage room temperature MIN: -50°C
Storage room temperature MAX: +90°C
| Brand | Palazzoli |
